Cement Coated Insulation Boards

Water resistant, insulated board made of extruded polystyrene, faced on both sides with a fibreglass mesh embedded into a thin cement polymer mortar.

Application

Under SPM and PVC heating mats

Under heating cables

Room Type

Ideal for bathrooms and kitchens

Build Type

Renovation

New Build

The cement coated insulation boards are a water resistant, insulated board made of extruded polystyrene, faced on both sides with a fibreglass mesh embedded into a thin cement polymer mortar.

The board is designed to withstand a load of 30 tonnes per square metre and is ideal for use with floor heating as it prevents the heat from penetrating down into the substrate below.

As a wall tile backer board, tiles can be fixed directly onto the surface without prior preparation and being waterproof, is suitable for bathrooms or showers.

Key Benefits

N

Increased energy efficiency

The boards help cutting the heat-up time by up to 90%

N

Strong but flexible

Made from extruded polystyrene the boards withstand a load of 30 tonnes per square metre and they can be cut to size to suit all shapes of rooms

N

Waterproof and soundproof

The boards are ideal in waterproofing bathrooms and kitchens, and also have excellent sound proofing properties

Size 1250 x 600mm
Thickness 6mm, 10mm, 20mm, 50mm
Density 36Kg/m3
Thermal conductivity 0,027W/moK
Compressive strength 3,0Kg/cm² (300kN/m²)
Water absorption (capillary) Nil
Fire Class “E” (EN13501-1)
Packaging 6mm (8 boards), 10mm (6 boards), 20 and 50mm (5 boards)

You will also need

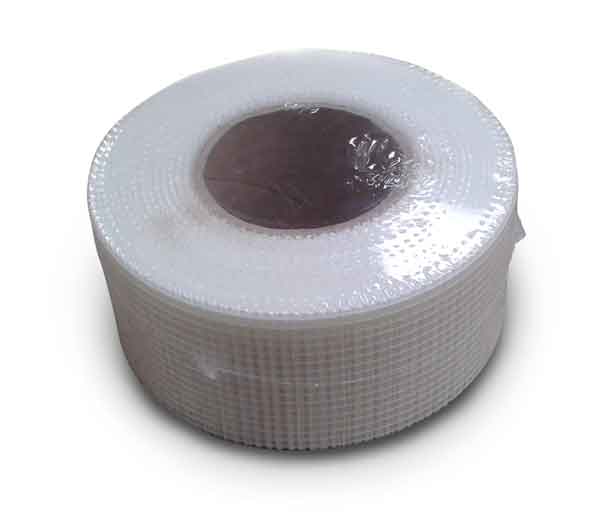

Fiberglass tape

The fiberglass tape will seal the unions between insulation boards

Read more
