DCM-PRO System

DCM-PRO is the fastest solution for the installation of a heated decoupling system in all areas, installing electric floor heating in minutes with less tile adhesive.

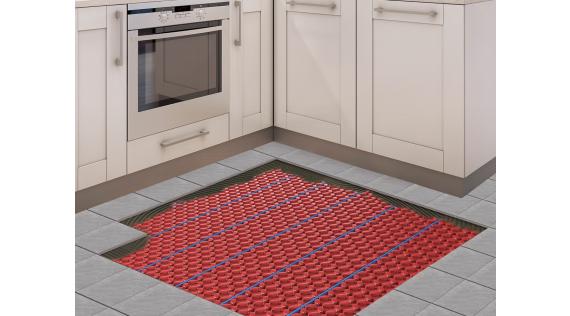

Warmup dcm-pro system

Application

Under ceramic tile or stone floors

Large and regular shaped areas

Renovation or new construction

The DCM-PRO is the fastest way to install a heated decoupling system in all areas; in fact 40% faster than standard floor heating membranes.

The self-adhesive underside of the DCM-PRO Mat acts as a self-healing decoupling layer and eliminates the need for an adhesive layer, significantly reducing both time and costs.

The pre-spaced channels on the mat also reduce time spent on measuring and calculating the correct spacing to output ratio as they are made to correspond directly with the cable sizes.

To facilitate installation even further, the DCM-PRO Cable is designed to be highly flexible, providing durability and maximum reliability and comes with a lifetime warranty when installed with the DCM-PRO Mat. As market-leaders in floor heating we can promise our premium quality product is guaranteed for the lifetime of the floor.

Protects floor surface from damage caused by subfloor movement.

Adhesive layer slides and stretches with expansion.

Adhesive layer contracts and self-heals if gap shrinks due to seasonal changes.

Key Benefits

N

Installs in minutes with less adhesive

The self-adhesive underside of the mat attaches directly to the subfloor and eliminates the need for an adhesive layer, significantly reducing installation time and cost.

N

Use with all floor types

The DCM-PRO can be covered with self-levelling compound, allowing it to heat and protect any floor covering material that is certified for use with floor heating.

N

No tools required to fit the cable

The DCM-PRO Cable is designed to be easily fitted in the mat without any tools. The cable is highly flexible, durable and provides maximum reliability.

Guarantee & Warranty

SafetyNet Installation Guarantee

If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another system of the same make and model free of charge.

Lifetime Warranty

This product comes with a Lifetime Warranty. We are completely confident in the standard of our products.

DCM-Pro Cable

Operating voltage 220-230V AC, 50Hz
Cable thickness 4.5mm
Inner Insulation Advanced Fluoropolymer (ETFE)
Outer Insulation Polyolefin (PVC)
Output rating 150w/m² (3 Castellations – 90mm)
IP Rating IPX7
Supply cable length 3m
Certificates accreditation-beab accreditations-CE

DCM-Pro Mat

Composition Polypropylene membrane with self-adhesive backing
Thickness 5.5mm
Spacing 60mm, 90mm & 120mm
Sizing 1m² sheet / 15m X 1m roll



DCM-Pro Cable

Model Cable length (m) Wattage (W) Amperage (A) Resistance (Ω)
DCM-C-1 11,1 150 0,6 353
DCM-C-1.5 16,6 225 0,9 235
DCM-C-2 22,2 300 1,3 176
DCM-C-2.5 27,7 375 1,6 141
DCM-C-3 33,3 450 1,9 118
DCM-C-3.5 38,8 525 2,2 101
DCM-C-4 44,4 600 2,5 88
DCM-C-4.5 50,0 675 2,8 78
DCM-C-5 55,5 750 3,2 71
DCM-C-6 66,6 900 3,8 59
DCM-C-7 77,7 1050 4,4 50
DCM-C-8 88,8 1200 5,0 44
DCM-C-9 100,0 1350 5,7 39
DCM-C-10 111,1 1500 6,3 35
DCM-C-12 133,3 1800 7,6 29
DCM-C-14 155,5 2100 8,8 25
DCM-C-16 177,1 2400 10,1 22



DCM-Pro Mat

Model Format Length (mm) Width (mm) Coverage (m²)
DCM-M-15 Roll 150 0,6 15



  1. Final floor
  2. Flexible adhesive or levelling compound
  3. Heating cable
  4. DCM-PRO mat
  5. Insulation
  6. Flexible adhesive
  7. Subfloor
